Bystronic ByBend Smart CNC bending machine
Product Description
Machine Specifications
| Machine Specifications | 100/3100 | 160/3100 | 160/4100 | 225/3100 | 225/4100 | 300/3100 | 300/4100 |
|---|---|---|---|---|---|---|---|
| Bending force | 100 t | 160 t | 160 t | 225 t | 225 t | 300 t | 300 t |
| Bending length | 3100 mm | 3100 mm | 4100 mm | 3100 mm | 4100 mm | 3100 mm | 4100 mm |
| Daylight | 580/610 mm | 580/610 mm | 580/610 mm | 580/610 mm | 580/610 mm | 580/610 mm | 580/610 mm |
| Stroke | 300 mm | 300 mm | 300 mm | 300 mm | 300 mm | 300 mm | 300 mm |
| Throat | 400 mm | 400 mm | 400 mm | 400 mm | 400 mm | 500 mm | 500 mm |
| Y axis accuracy | 0.01 mm | 0.01 mm | 0.01 mm | 0.01 mm | 0.01 mm | 0.01 mm | 0.01 mm |
| Y axis approach speed | 200/250 mm/s | 200/220 mm/s | 200/220 mm/s | 180/200 mm/s | 180/200 mm/s | 120 mm/s | 120 mm/s |
| Y axis bending speed | 16/20 mm/s | 13/18 mm/s | 13/18 mm/s | 13/15 mm/s | 13/15 mm/s | 10/12 mm/s | 10/12 mm/s |
| Y axis return speed | 200/250 mm/s | 180/220 mm/s | 180/220 mm/s | 170/200 mm/s | 170/200 mm/s | 115/150 mm/s | 115/150 mm/s |
| Max. backgauge range in X axis | 850 mm | 850 mm | 850 mm | 850 mm | 850 mm | 850 mm | 850 mm |
| X axis accuracy | 0.05 mm | 0.05 mm | 0.05 mm | 0.05 mm | 0.05 mm | 0.05 mm | 0.05 mm |
| R axis travel | 150 mm | 150 mm | 150 mm | 150 mm | 150 mm | 150 mm | 150 mm |
| R axis accuracy | 0.05 mm | 0.05 mm | 0.05 mm | 0.05 mm | 0.05 mm | 0.05 mm | 0.05 mm |
The Bystronic ByBend Smart CNC bending machine delivers high bending performance, exceeding expectations in productivity and flexibility at a reasonable investment cost. This is the ideal choice for businesses to quickly access world-class bending technology, achieving Swiss quality without requiring a large upfront investment.
Key Features:
- High bending performance for the present and future: meeting both current production needs and future expansion plans.
- Quick access to world-class bending technology: shortened uptime and rapid production deployment.
- Swiss quality at a reasonable cost: inheriting Bystronic’s manufacturing standards at a competitive price.
- Flexible and customizable options: meeting the most demanding requirements for productivity and flexibility.
- Modern control system with user-friendly offline programming: enabling easy operation for the operator.
- Comprehensive experience from Bystronic: inheriting years of know-how in the sheet metal fabrication field.
- Streamlined process: Bystronic’s software solutions and OPC-UA interface optimally integrate ByBend Smart into existing production environments.
Key features of ByBend Smart:
- Daylight and stroke length expansion: allows the use of taller dies and the machining of parts with longer bending profiles.
- Dynamic sheet supports: up to 220.46 lbs (approximately 100 kg) per support, reducing physical strain on operators during daily operations.
- RF-A Pro quick clamping system (optional): increases processing speed for bending jobs requiring frequent die changes.

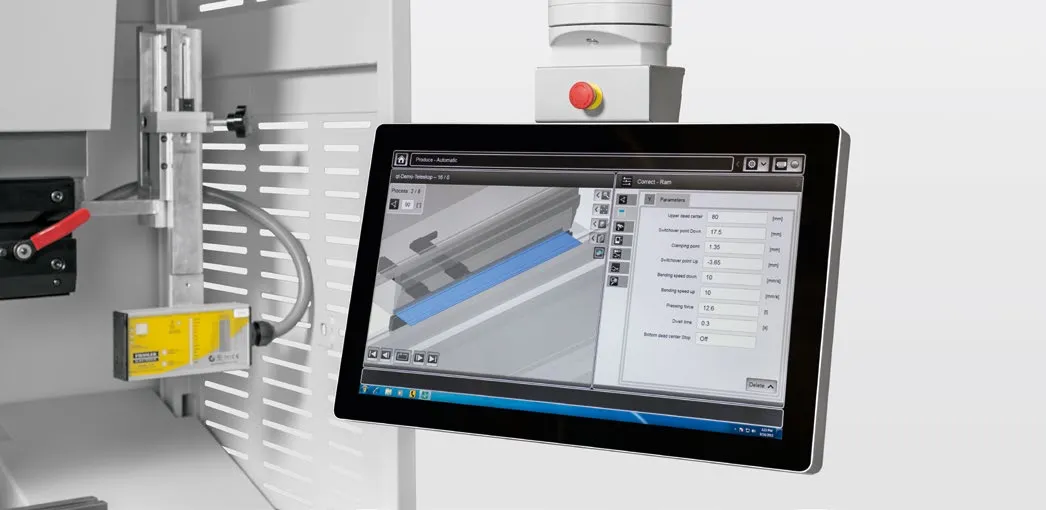

- Complete control via a 22-inch touchscreen: operators can manage the entire bending process with just a few touches.
