Bystronic ByBend Smart E CNC bending machine
Machine Specifications
| Specification | 35/1050 | 55/1550 |
|---|---|---|
| Length | 1,661 mm | 2,159 mm |
| Width | 1,610 mm | 1,610 mm |
| Height | 2,281 mm | 2,360 mm |
| Tonnage | 35.02 t | 55.02 t |
| Bending length | 1,049 mm | 1,549 mm |
| Standard stroke | 150 mm | 150 mm |
| Daylight | 450 mm | 450 mm |
| Max. back gauge range X-axis | 500 mm | 500 mm |
| X-axis travel | 300 mm | 300 mm |
| X-axis speed | 24,000 mm/min | 24,000 mm/min |
| X-axis accuracy | 0.051 mm | 0.051 mm |
| R-axis travel | 99 mm | 99 mm |
| R-axis speed | 6,000 mm/min | 6,000 mm/min |
| R-axis accuracy | 0.051 mm | 0.051 mm |
| Z-axis travel | 681 mm | 1,181 mm |
| Z-axis speed for 4/5-axis (up to) | 36,000 mm/min | 36,000 mm/min |
| Y-approach speed (up to) | 12,000 mm/min | 12,000 mm/min |
| Y-working speed (up to) | 1,199 mm/min | 1,199 mm/min |
| Accuracy Y-axis | 0.010 mm | 0.010 mm |
| Main motor power | 8.20 kW | 9.10 kW |
| Weight | 2,650 kg | 3,600 kg |
The Bystronic ByBend Smart E CNC bending machine is the next generation of sheet metal bending machines, using electric drive instead of traditional hydraulic systems. As a result, the machine operates cleanly, without oil leaks, consumes less energy, and requires minimal installation space, making it suitable for sheet metal processing workshops seeking a compact bending solution that still ensures high productivity and reasonable investment costs.

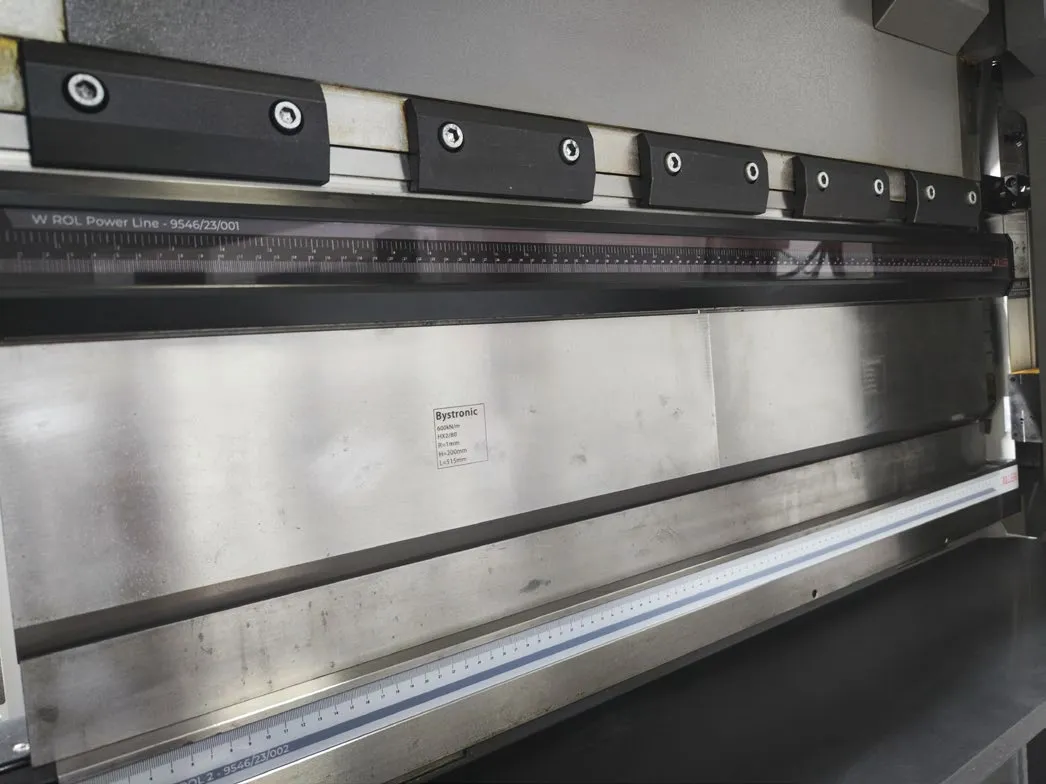

With bending forces ranging from 35 to 55 tons and bending lengths from 1,050 mm to 1,550 mm, the ByBend Smart E effectively handles both small parts and medium-sized sheet metal. The X, R, Z, and Y axis systems operate at high speeds with positioning accuracy of 0.05 mm for the X/R axis and 0.01 mm for the Y axis, ensuring stable repeatability across each bending path. Ergonomic design with a foldable front support table and pneumatic clamping system significantly reduces mold change times, providing flexibility when switching between different orders.
The machine is suitable for sheet metal fabrication workshops, electrical cabinet manufacturers, industrial equipment, and mechanical parts requiring high precision in shaping. The ByBend Smart E comes equipped with OPCUA communication and robot connection ports, allowing businesses to add automation solutions whenever needed, gradually building a smarter and more efficient production line.
